Cellium's low-cost, power-efficient end-to-end antenna extension sub-system provides full in-building coverage.

The

EdgeAir Solution

Cellium’s EdgeAir is a low-cost and power-efficient end-to-end Antenna extension sub-system that can be utilized for a full in-building wireless coverage (IBW) and capacity boost.

The EdgeAir system consists of multiple elements which together provide the means to transfer 3rd party RAN equipment RF signals over CATx, fiber, or coax cables, in the analog domain – without any digital to analog conversion, compression, or other degradation of the RF signal. The RF signal, originating at the source (RAN equipment) is down-converted from RF to IF, transmitted over CATx copper wires to remote units where the signal is up-converted from IF to RF and transmitted over the air utilizing the remote unit’s local FEM (Front-end-Module) and antennas.

EdgeAir utilizes Cellium’s patented SoCs which are RAT, RAN topology, and Vendor Agnostic. The SoCs are designed to dramatically reduced system costs.

EdgeAir for Mobile Operators

Our antenna sub-system is the world’s first to optimally distribute any sub-7 GHz wireless protocol to address the current
and future needs of In-Building wireless

EdgeAir 'm' Family

Cellium’s EdgeAir ‘m’ Family is specifically designed for MNO deployment, with NSA topology in mind. The EdgeAir ‘m’, provides the means for the MNO, to easily deploy multiple antennas indoors where a single remote unit can transmit and receive both LTE (up to 40MHz) and 5G-NR (up to 100MHz). Thus reducing the cost of installation and real-estate of multiple units – reducing CAPEX, OPEX, and installation cost.

The EdgeAir ‘m’ family consists of multiple elements (products), which together allow the MNO or the landlord to deploy an NSA based 5G-NR system efficiently in any type of in-building deployment.

Find more about the EdgeAir ‘m’ Family

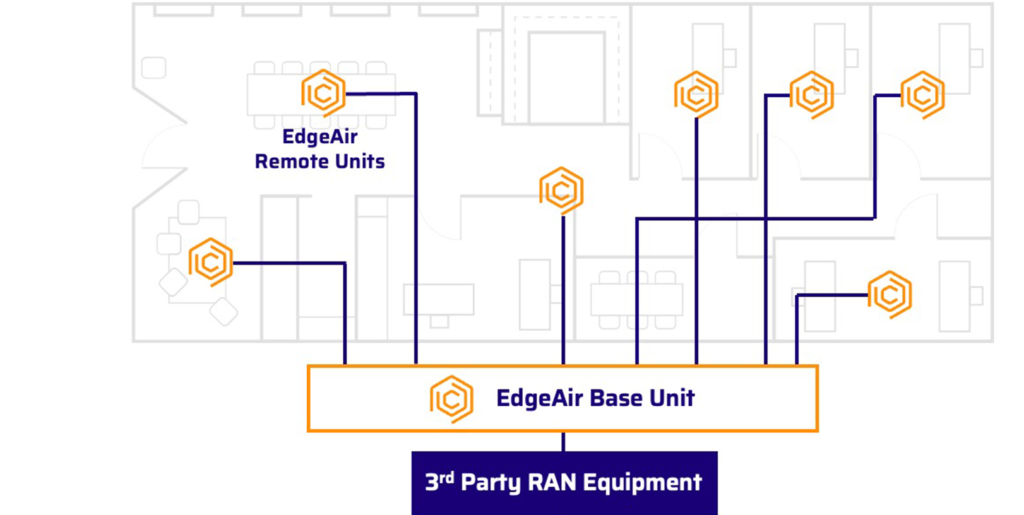

EdgeAir system consists of the following elements:

  • Base Unit (BU) – Interacts with the 3rd party RAN equipment (LTE and 5G-NR) with up to 8 Remote Units
  • Remote Unit (RU) – multi-RAT Active Antenna Unit
  • Line Extender Unit (LU) – Line Extender (repeater) Unit
  • Expander Unit (EU, Passive/Active) – Cascading unit, expands the number of RUs that can interact with a single BU.

EdgeAir mBU

The EdgeAir mBU is an NSA Base Unit, which interacts with multiple 3rd party RAN equipment.

It supports up to 2×2 100MHz 5G-NR RAN equipment and up to 2×2 40MHz LTE RAN equipment, via its RF interface.

It also connects, via CATx cables, with up to 8 mRUs directly or 8 mEU to allow support for up to 64 mRUs in total.

EdgeAir mRU

The EdgeAir mRU is an NSA Remote Unit, which interact with Cellium’s mBU, mEU and mPU.

It provides a 2×2 100MHz 5G-NR RAN and 2×2 40MHz LTE RAN transmission and receive capabilities.

EdgeAir for Private Networks

Our EdgeAir system allows optimal distribution of any cellular sub-7 GHz wireless signal alongside the existing LAN (WiFi source)

EdgeAir 'p' Family

Cellium’s EdgeAir ‘p’ Family is specifically designed for Private Network deployment, utilizing existing or greenfield CATx Infrastructure, to distribute Cellular alongside the exisiting LAN. The EdgeAir ‘p’, provides the means for the Private Network owner or Service Provider, to easily deploy multiple antennas indoors where a single remote unit can transmit and receive 5G-NR (up to 100MHz) private network signals while allowing the signal to pass through the LAN signal of existing WiFi Access Points (APs) . Thus, reducing the cost of installation, allowing both technologies to co-exist and utilize existing WiFi AP equipment – reducing CAPEX, OPEX, and installation cost.

The EdgeAir ‘p’ family consists of multiple elements (products), which together allow the Private Network to deploy a SA based 5G-NR system alongside 3rd party WiFi Equipment.

Find more about the EdgeAir ‘p’ Family

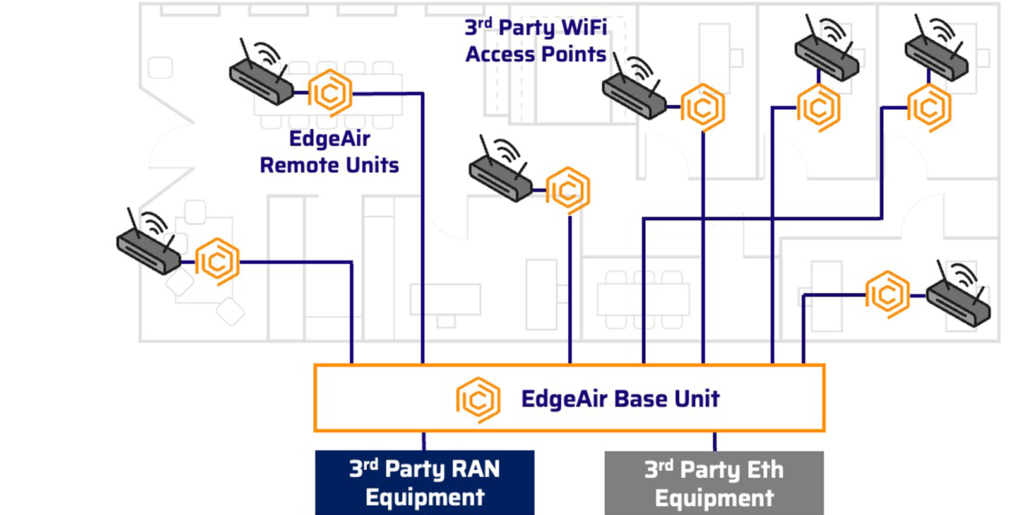

EdgeAir ‘p’ family consists of the following elements:

  • Base Unit (BU) – Interacts with the 3rd party vendor 5G-NR RAN equipment with up to 8 Remote Units
  • Remote Unit (RU) – 5G-NR active antenna which cascades to 3rd party Wi-Fi AP’s
  • Line Extender Unit (LU) – Line Extender (repeater) Unit
  • Expander Unit (EU, Passive/Active) – Cascading unit, expands the number of RUs that can interact with a single BU and RAN equipment.

EdgeAir pBU

The EdgeAir pBU is an SA Base Unit, which interacts with 3rd party RAN equipment.

It supports up to 4×4 100MHz 5G-NR RAN, via its RF interface.

It also connects, via CATx cables, with up to 8 pRUs directly or 8 pEU to allow support for up to 64 pRUs in total.

EdgeAir pRU

The EdgeAir pRU is an SA Remote Unit, which interact with Cellium’s pBU, pEU and pLU.

It provides a 4×4 100MHz 5G-NR RAN transmission and receive capabilities as well as a passthrough (cascading) IP ethernet to 3rd party WiFi AP.
